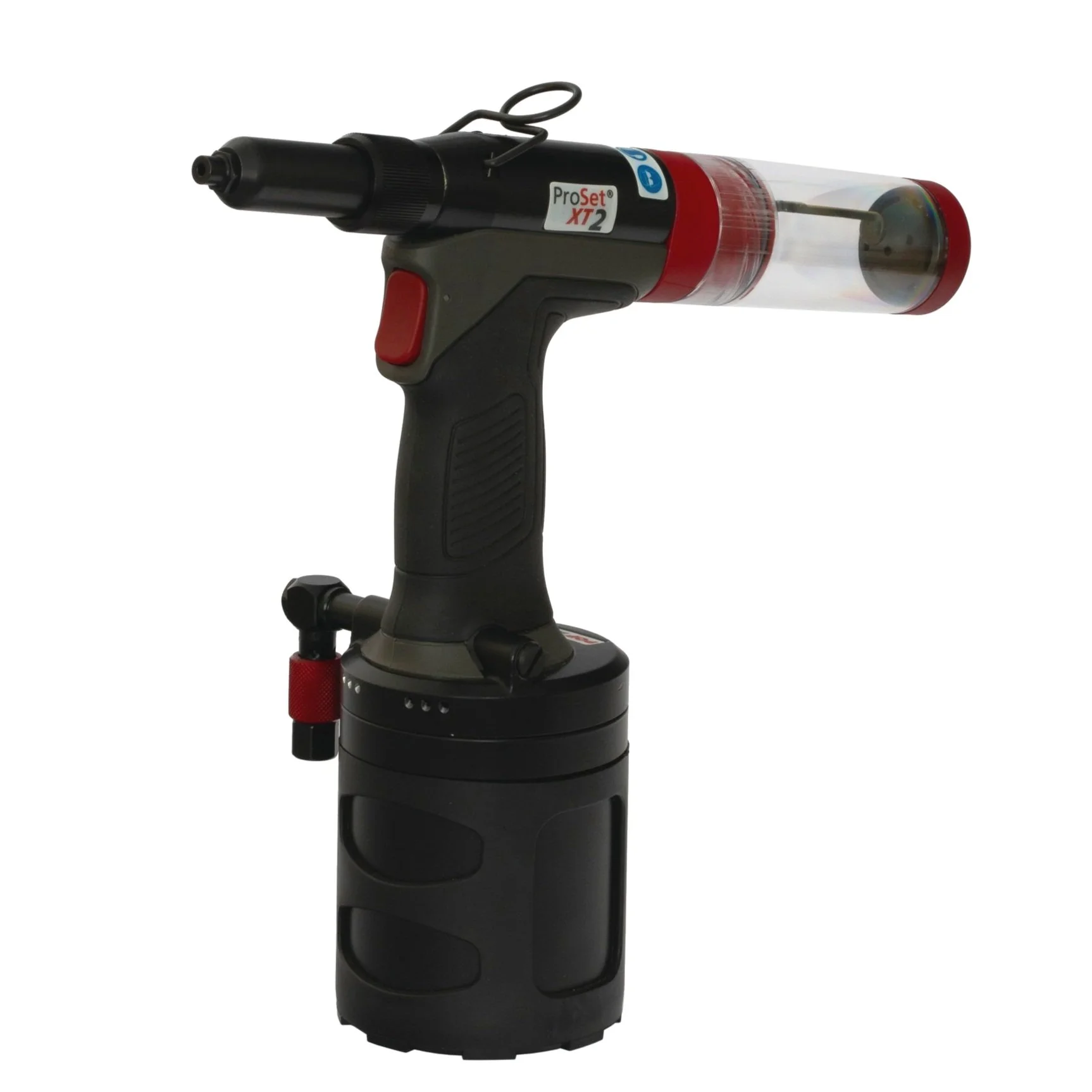

Stanley ProSet XT2 3-5mm Hydro-Pneumatic Riveter
The ProSet® XT2 sets a new standard for pneumatic rivet tools. Designed specifically to set a wide range of breakstem rivets, this tool delivers 8.9 kN of pull force with an outstanding force-to weight ratio of 7.18kN/kg. The innovative, ergonomic design ensures maximum user comfort and efficiency.
The ProSet® XT2 will set 3.0 & 3.2mm (1/8"), 4.0mm (5/32"), 4.8mm (3/16"), and 5.0mm diameter rivets in all materials including high-strength structural stainless steel rivets. The ProSet® XT2 will also place up to 7.0mm sealing plugs with an additional nose assembly.
The ProSet® XT2 sets a new standard for pneumatic rivet tools. Designed specifically to set a wide range of breakstem rivets, this tool delivers 8.9 kN of pull force with an outstanding force-to weight ratio of 7.18kN/kg. The innovative, ergonomic design ensures maximum user comfort and efficiency.
The ProSet® XT2 will set 3.0 & 3.2mm (1/8"), 4.0mm (5/32"), 4.8mm (3/16"), and 5.0mm diameter rivets in all materials including high-strength structural stainless steel rivets. The ProSet® XT2 will also place up to 7.0mm sealing plugs with an additional nose assembly.
The ProSet® XT2 sets a new standard for pneumatic rivet tools. Designed specifically to set a wide range of breakstem rivets, this tool delivers 8.9 kN of pull force with an outstanding force-to weight ratio of 7.18kN/kg. The innovative, ergonomic design ensures maximum user comfort and efficiency.
The ProSet® XT2 will set 3.0 & 3.2mm (1/8"), 4.0mm (5/32"), 4.8mm (3/16"), and 5.0mm diameter rivets in all materials including high-strength structural stainless steel rivets. The ProSet® XT2 will also place up to 7.0mm sealing plugs with an additional nose assembly.
Performance
High force-to-weight ratio
Quick-disconnect nose housing and jaw case for easy maintenance and service
Clear quick-release mandrel collector bottle reduces downtime
Integral exhaust valves for fast setting cycles
Ergonomic
Class-leading lightweight construction with balanced handling
Comfortable, low activation-force trigger
Adjustable vacuum exhaust direction
Economy & Safety
Air isolation switch during MCS removal
On/Off, left- or right-swivel air fitting minimizes air consumption and noise and conserves energy
Rubber base designed to avoid damage
Latest technology lip seals maximize re-priming intervals
Piston bearing rings ensure maximum robustness and tool life
-
Pulling Force: 8.9kN
Weight: 1.32kg
Cycle Time: 0.6 Seconds
Stroke: 20mm
Sound Power (a): 89.5dB
Sound Pressure (c): 78.9dB
Vibration (a): 0.74m/s2
Vibration (k): 0.37m/s2 -
-
