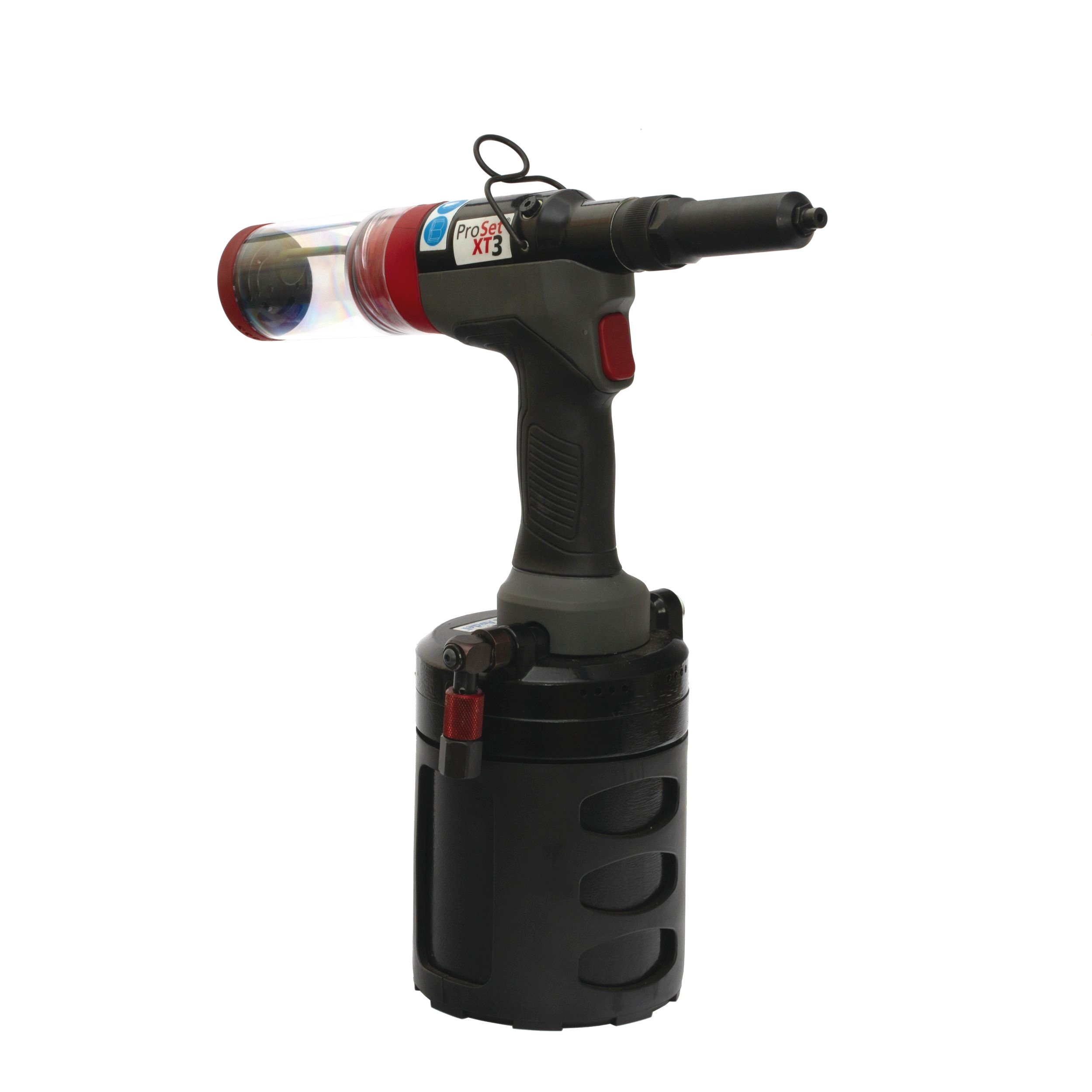

Stanley ProSet XT3 4-6.4mm Hydro-Pneumatic Riveter
The ProSet® XT3 can be used in a variety of applications, setting a large range of breakstem rivets, lockbolts, and sealing plug sizes. The extremely large stroke of 26 mm allows the placement of longer rivets like Monobolt® and Interlock® in one set. The innovative, ergonomic design ensures maximum user comfort and efficiency.
The ProSet® XT3 will set 4.0mm (5/32") to 6.4mm (1/4”) diameter rivets in all materials. It will also set 4.8 (3/16") diameter lockbolts and up to 9.0mm diameter sealing plugs with additional nose assembly.
The ProSet® XT3 can be used in a variety of applications, setting a large range of breakstem rivets, lockbolts, and sealing plug sizes. The extremely large stroke of 26 mm allows the placement of longer rivets like Monobolt® and Interlock® in one set. The innovative, ergonomic design ensures maximum user comfort and efficiency.
The ProSet® XT3 will set 4.0mm (5/32") to 6.4mm (1/4”) diameter rivets in all materials. It will also set 4.8 (3/16") diameter lockbolts and up to 9.0mm diameter sealing plugs with additional nose assembly.
The ProSet® XT3 can be used in a variety of applications, setting a large range of breakstem rivets, lockbolts, and sealing plug sizes. The extremely large stroke of 26 mm allows the placement of longer rivets like Monobolt® and Interlock® in one set. The innovative, ergonomic design ensures maximum user comfort and efficiency.
The ProSet® XT3 will set 4.0mm (5/32") to 6.4mm (1/4”) diameter rivets in all materials. It will also set 4.8 (3/16") diameter lockbolts and up to 9.0mm diameter sealing plugs with additional nose assembly.
Performance
High force-to-weight ratio
Quick-disconnect nose housing and jaw case for easy maintenance and service
Clear quick-release mandrel collector bottle reduces downtime
Integral exhaust valves for fast setting cycles
Ergonomic
Class-leading lightweight construction with balanced handling
Comfortable, low activation-force trigger
Adjustable vacuum exhaust direction
Economy & Safety
Air isolation switch during MCS removal
On/Off, left- or right-swivel air fitting minimizes air consumption and noise and conserves energy
Rubber base designed to avoid damage
Latest technology lip seals maximize re-priming intervals
Piston bearing rings ensure maximum robustness and tool life
-
Pulling Force: 17kN
Weight: 2.24kg
Cycle Time: 0.9 Seconds
Stroke: 26mm
Sound Power (a): 90.3dB
Sound Pressure (c): 82.7dB
Vibration (a): 1.41m/s2
Vibration (k): 0.7m/s2 -
-
